HomePowerStation Energy Storage System

The Most INNOVATIVE ENERGY STORAGE SYSTEM Product On The Earth

CDS SOLAR has engineered the most innovative and valuable energy storage technology available the PowerStation energy storage system. Our mission is bring more solar energy to the world. PowerStation energy storage system bring all in one design and plug and play function to reduce the construction and O&M cost up to 30%. With a minimalist design and highly configurable, PowerStation energy storage system improves reliability and design flexibility while lowering O&M costs. We believe value is more than the cost of a energy storage system. It’s about building with forgiving tolerances and fewer parts so construction crews can work efficiently. It means protecting your investment with a failure-free risk management system.

ALL IN ONE DESIGN & PLUG AND PLAY EASY TO INSTALL AND USE
All power conversion equipment is installed in one container and manufactured with IEC standards. We use PV string inverter and power converter with building block design. It is a real all-in-one power machine with high stability. Customers only need to plug the electrical equipment into container.
ON AND OFF GRID FUNCTION MEET ALL YOUR NEEDS
PowerStation energy storage system have on-grid function and off-grid function. Off-grid function can guarantee the stability of power supply. The on-grid function allows customers to sell excess power to the grid, increasing your income. It is the best solution for your need of power.
System Overview
PV Power 50kWp-2000kWp
AC Power 50kW-2000kW
Storage Capacity 875 kWh        (20-foot Container, include PCS, Battery Pack, BMS,EMS)

1400kWh       (20-foot Container, include Battery Pack, BMS)

2450MWh      (40-foot Container, include PCS, Battery Pack, BMS,EMS)

3125kWh       (40-foot Container, include Battery Pack, BMS)

PV Panel 330Wp-375Wp (Poly & Mono)
Standard CE & ETL & UL Certificate.
PV Bracket Structure Hot-dip galvanizing steel and aluminum alloy. 25-years long life.
Energy Control System EMS + BMS system, communication interface is RS485 or CAN.

PS100TM PV Energy Storage System

PV Module
Max Power 330 Wp
Open Circuit Voltage 45.9 V
Nominal Voltage 37.5 V
Short Circuit Current 9.12 A
Nominal Current 8.80 A
Number of String 24
Certification TUV
PCS (Power converter)
AC Power 100 kW
Max Input PV Power 110 kW
Nominal AC Voltage 400/480 V
Nominal AC Current 144/120 A
DC Voltage Range 500V – 850V
Frequency 50/60Hz
Certification CE,ETL
Battery Pack
Battery Pack Capacity 525kWh
Number of Battery Module 3 units
Battery Module Voltage 729.6 V
Battery Module Capacity 175.1kWh
Battery Type LiFePO4 Battery
Cycle life 5000(90%DOD)
Certification UL
PV Bracket Structure
Supporting Structural Hot-dip galvanized steel
Mounting Structural Aluminum Alloy
Fastening Piece Stainless Steel
Max Wind Load 33.3m/s
1. Tilt angle is based on local latitude.
2. Foundation can use concrete or screw pile.
3. Time of standard Installation is 1 week.

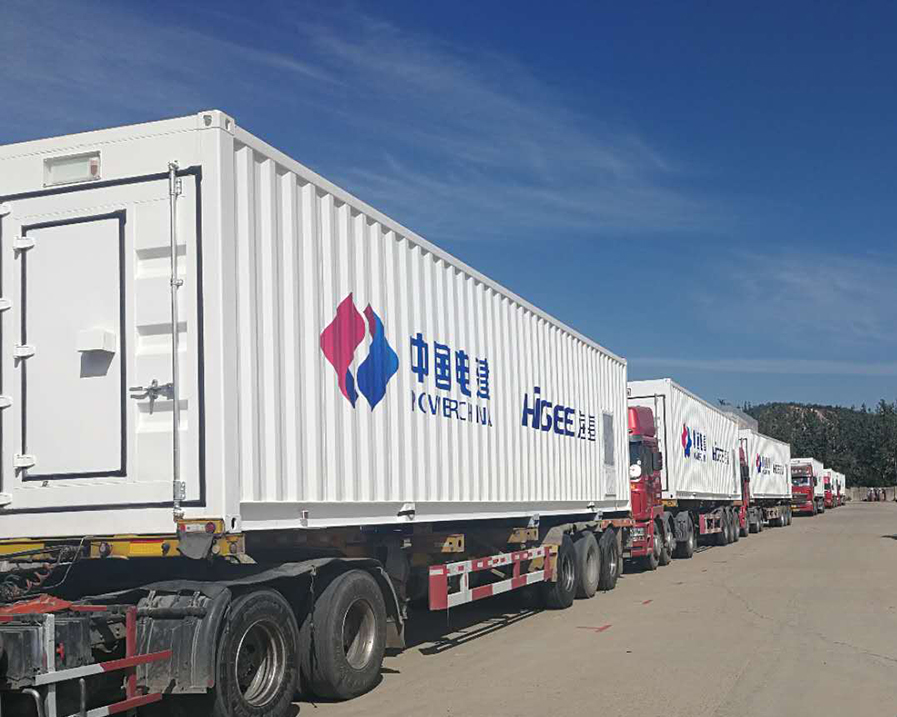

https://www.cds-solar.com/wp-content/uploads/2019/06/5d14a2f1ae4bd537.jpg

SERVICE

Exemplary customer service is tightly woven into CDS SOLAR company’s DNA. We have 10 years of experience, and we know how to best help you speed installation, lower project costs, insure proper maintenance, and answer every question you might have. We’ve got you covered with our on-site tech advisors. Customer service is value – one that we’ve always carried in our DNA, and always will.

Design Service Site Plan, Layout, Topography Review
On-Site Tech Advisors Standard and Paid Service



Standard Energy Storage System

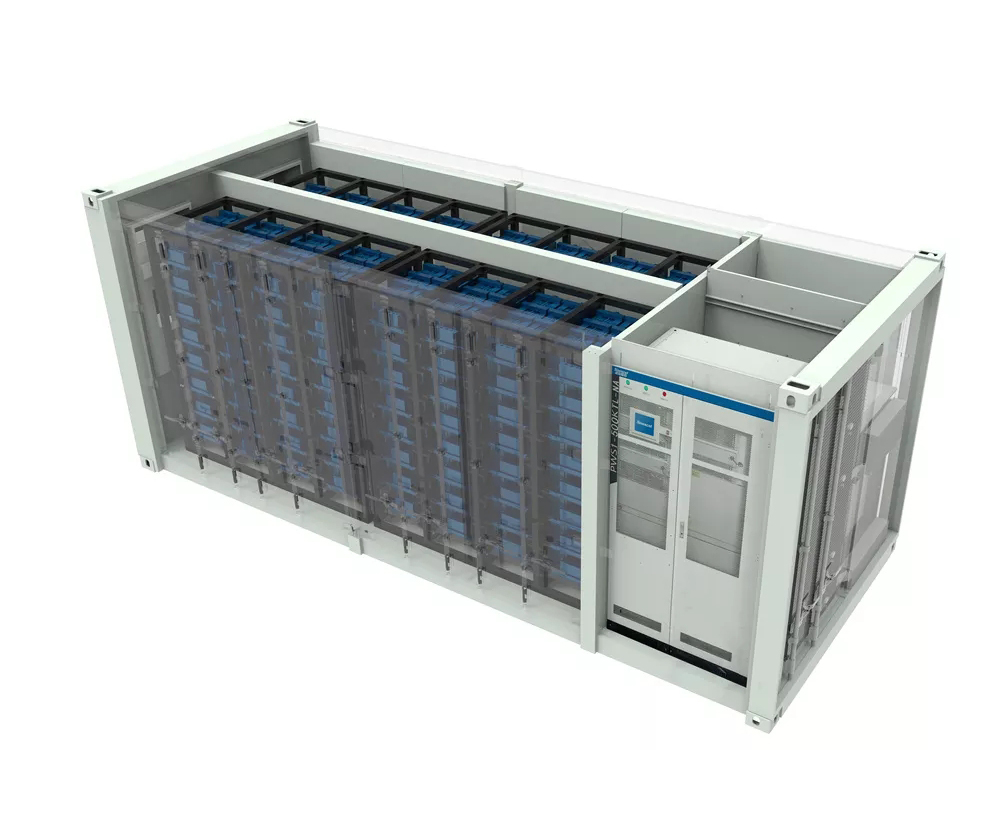

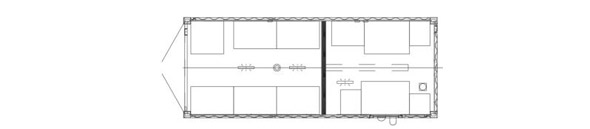

20-FOOT CONTAINERIZED ESS
Standard ESS Power Storage Capacity
PS50 50kW ≤ 875kWh
PS100 100kW ≤ 875kWh
PS150 150kW ≤ 875kWh
PS250 250kW ≤ 875kWh

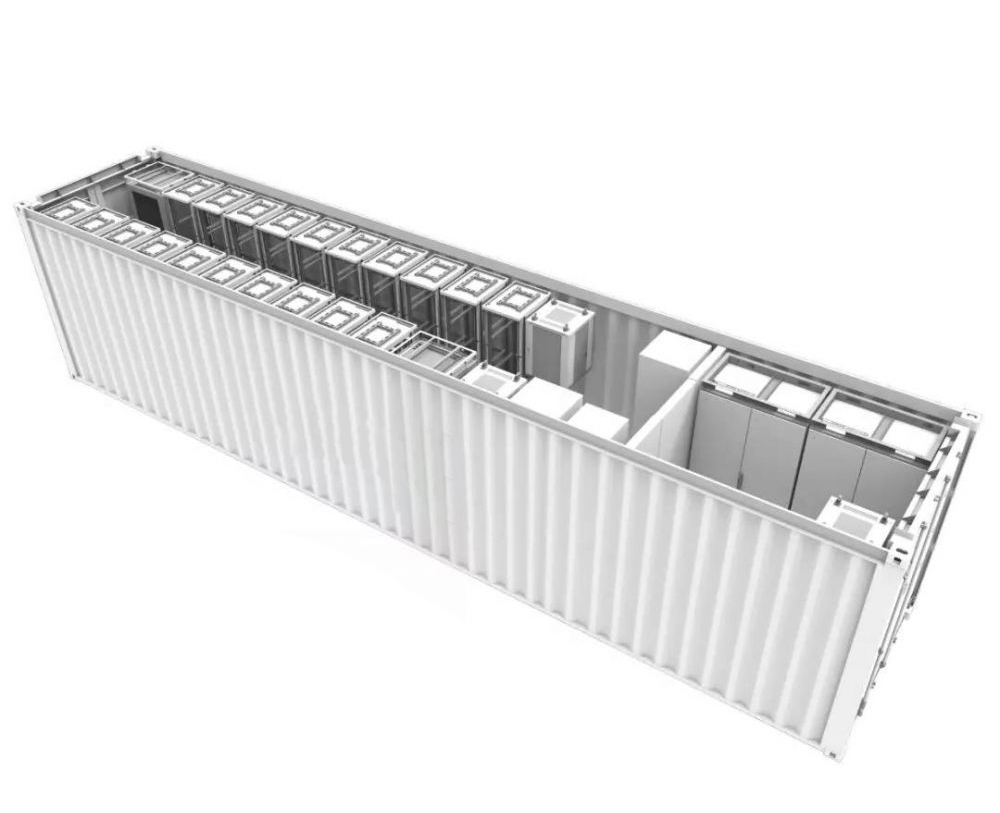

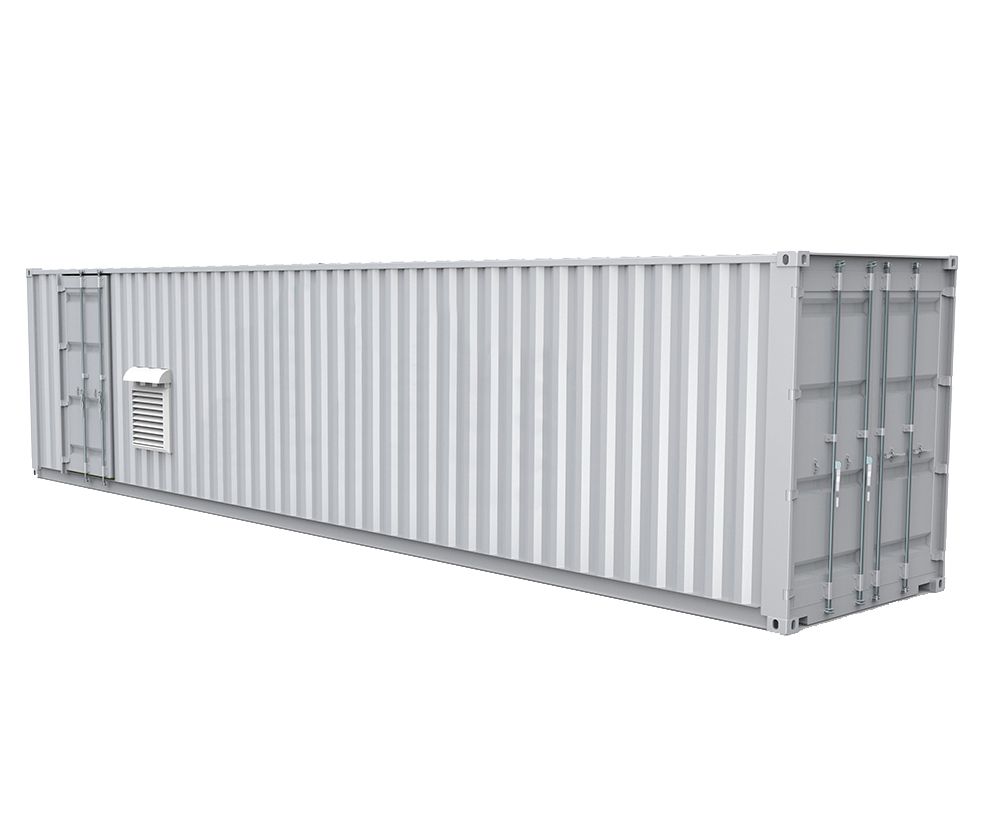

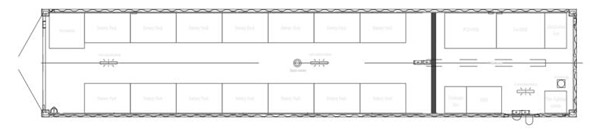

40-FOOT CONTAINERIZED ESS
Standard ESS Power Storage Capacity
PS100 100kW ≤ 2450kWh
PS150 150kW ≤ 2450kWh
PS250 250kW ≤ 2450kWh
PS500 500kW ≤ 2450kWh

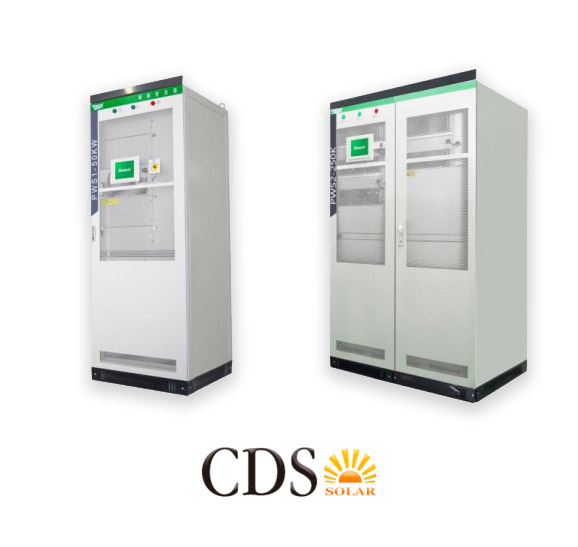

Power Converter System

Item PCS50 PCS100 PCS150 PCS250 PCS500
AC Rated Power 50 kW 100kW 150kW 250kW 500kW
Max Input PV Power 55 kW 110kW 165kW 275kW 550kW
Nominal AC Voltage 400/480 V
DC Voltage Range 500V – 850V
Frequency 50/60Hz
Certification CE & ETL
https://www.cds-solar.com/wp-content/uploads/2019/07/5d2de639168c5e7f.jpg

Lithium lron Phosphate Battery

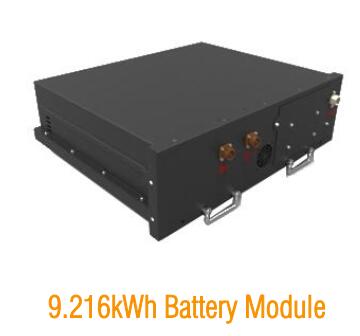

https://www.cds-solar.com/wp-content/uploads/2019/06/5d158418d458ec47.jpg
Item Parameter
Cell Type LFP48173170-120Ah
Charging Rate ≤ 1C
Discharge Rate ≤1C
Combination Method 2P12S
Nominal Capacity 240Ah
Nominal Energy 9.216kWh
Nominal Voltage 38.4VDC
Operating Voltage Range 33.6VDC ~ 43.2 VDC
Operating Temperature Range -20~ 55
Size W525*D505*H190mm
Weight 85kg

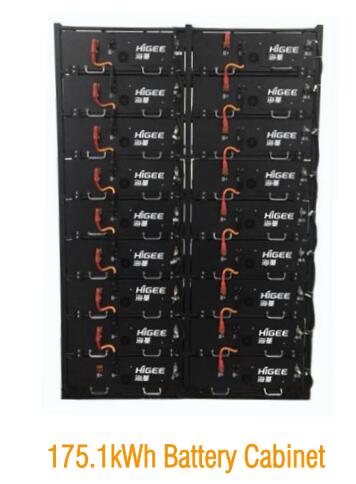

https://www.cds-solar.com/wp-content/uploads/2019/06/5d15841a36bbbcc9.jpg
Item Parameter
Cell Type LFP48173170-120Ah
Charging Rate ≤ 1C
Discharge Rate ≤1C
Combination Method 2P228S
Nominal Capacity 240Ah
Nominal Energy 175.1kWh
Nominal Voltage 729.2VDC
Operating Voltage Range 638.4VDC ~ 832.2 VDC
Operating Temperature Range -20~ 55
Size W1050*D550*H2200mm
Weight 1850kg
